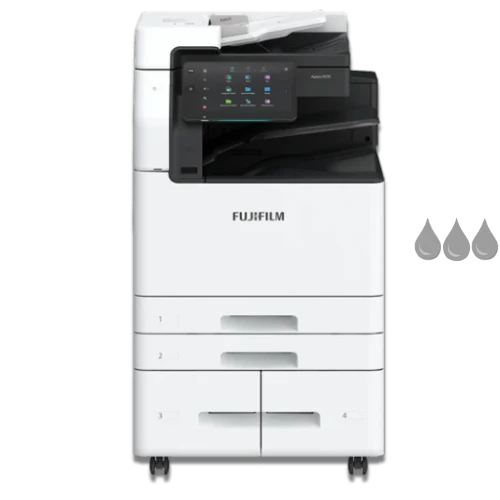

Fujifilm Apeos 4570 / 5570

Fujifilm A3 Monochrome Multifunction Printer

Features at a glance

Best suited for

Busy Departments & Centralised Print Rooms

Apeos 4570 / 5570 for busy print departments

The Fujifilm Apeos 4570 and 5570 are mid-to-high-range A3 monochrome multifunction printers built for busy departments and centralised print rooms that need balanced throughput and flexibility. Running at 45 ppm on the 4570 and 55 ppm on the 5570 with a first page out in 3.6 seconds both units handle print copy scan and optional fax with the responsiveness required in high-traffic environments.
A 10.1-inch touchscreen and dual-scan document feeder at up to 160 ipm duplex give teams the interface and scanning speed for batch jobs. Paper handling starts at 3200 sheets standard with a tandem tray module and scales up to 6140 sheets maximum across A5 to SRA3 with stocks from 52 to 300 gsm. Finishing covers 100-sheet stapling, 2/4-hole punch, saddle stitch booklet, letter fold, tri-fold, and Z-fold via the Folder Unit CD3.

Engineers Experience

A3 mono at production-relevant speeds, with SRA3 support, stocks up to 300 gsm, and a finishing range: 100-sheet stapling, saddle stitch, tri-fold, Z-fold. This genuinely covers 95% of in-house jobwork. The dual-scan DADF moves originals fast enough to support real digitisation projects, and the resolution is sharper than the entry-level Apeos. Paper input scales generously, which means you can leave it running. Not a production press, but a serious mid-volume departmental device. In a production shop it slots in as the daily-document workhorse, freeing the press for revenue-generating runs.

Features

  • Print speed: up to 45 ppm (Apeos 4570) or 55 ppm (Apeos 5570)
  • Print resolution: 1200 x 2400 dpi
  • Scan speed: up to 160 ipm duplex via single-pass DADF
  • Paper size range: A5 to SRA3 (320 x 450 mm)
  • Paper weight: 52 to 300 gsm
  • Paper capacity: 3200 sheets standard up to 6140 sheets maximum
  • 10.1-inch colour touchscreen
  • First copy output time: 3.6 seconds
  • Single-pass duplex automatic document feeder: up to 130-sheet capacity
  • Gigabit Ethernet standard; optional Wi-Fi
  • Mobile printing: AirPrint Mopria Wi-Fi Direct Cloud-enabled
  • Finishing options: 100-sheet stapling 2/4-hole punch saddle stitch booklet letter fold tri-fold Z-fold staple-free stapling on Finisher-B5/C5
  • Optional High Capacity Feeder B1 (2000 sheets) or B2 (2940 sheets)
  • Security: user authentication encrypted PDF support confidential fax receipt TPM 2.0
  • Integrated and ready for Oxbow managed service contracts

Case Studies

Frequently Asked Questions

What is dpi and ppm?

Dots Per Inch (DPI) measures Print Resolution, where higher values produce sharper, more detailed output. This matters more for graphics and marketing material than it does for everyday documents. Pages per minute (PPM) measures output speed under normal working conditions, and selecting outputs that are too slow causes bottlenecks. Oxbow’s team will assess your actual print volumes and output requirements to make sure the device we recommend hits the right benchmarks for your environment, not just on paper, but in practice.

A Printer outputs documents. An MFP Prints, Scans, Copies, and in many cases, Faxes all from one device. For most businesses, the MFP is the practical default: it consolidates hardware, reduces desk footprint, and integrates with cloud storage and document management platforms. Oxbow’s certified specialists can assess your environment and workflows and recommend the right device for your output demands, team size, and budget so you get the capability you need without paying for what you don’t.

A Managed Print Service is a contract arrangement where Oxbow takes full responsibility for your Printing Environment: Hardware, Consumables, Maintenance, and Support, all under one agreement. Instead of reactive repairs and toner orders, everything is monitored and managed proactively. The result is predictable monthly costs and a Printing Environment that runs without requiring internal resources to maintain it.

Yes. In most cases printing from a smartphone or tablet is straightforward, provided your network is configured correctly. When Oxbow installs your device, our technicians will ensure mobile printing is set up and working from day one. And if you run into any issues down the line, our support team is on hand to troubleshoot and get you back up and running quickly.

Your device will display a low toner warning on the control panel, typically showing a percentage remaining. Clients on an MPS contract will have toner automatically reordered. Toner can be easily reordered from our in-house consumables department.

Our dedicated support team will respond to any service queries within a maximum of 4 hours (during office hours), with a technician dispatched instantly should the query require on-site assistance. Just over 10% of queries can be solved remotely, while on-site support averages at 30 to 45 minutes for a complete fix.

Oxbow SA is conveniently located at Century Gate Business Park, Block 01, Century City, Cape Town, 7441, serving businesses across Century City, Milnerton, Montague Gardens, and the greater Cape Town area.
